Multiple Destination Audio/Video Routing Switcher 8x16 AVRS 8x16

This broadcast quality audio follows video router with 128 crosspoints in two levels, combines the latest in video and audio circuit technology with a powerful control system. The AVRS 8x16 is a 8 source multiple output (up to 16) device, allowing two levels, such as composite video and mono audio to be controlled together in an audio-follow-video (AFV) manner. The unit is ideal for AFV application, where independent control over two levels is required. Status is controlled and displayed trough a backlight LCD display panel. Sufficient memory is available to store several different configurations (120). The device is easy to use due to a sophisticated microprocessor-based design that allows many powerful features such as source and destination lockouts and salvos, timing program procedure including periodic operation (daily, weekly and monthly in 1 minute scale) and 120 independent device configurations nonvolatile memory. Using the build-in RS232 control port the AVRS 8x16 can be controlled from a distant location by a PC, running a Windows95-based Graphical User Interface Application (included).

For broadcast “on-air” mode application or video editing purposes switching takes place during the vertical interval (according to the proposed SMPTE RP 165 Standard) by one of the input signals or by composite synchro-input. Composite synchro-output separated from the master video input signal is also available.
Video inputs are BNC 75 Ohm loaded connectors. The video outputs are 75 Ohm wideband amplified, BNC connector type fitted. Audio inputs are high impedance, balanced, to provide noise suppression on the incoming signals. Low impedance drivers provide undistorted balanced outputs. 25-pin subminiature “D” connectors are used for input and output connectors (optional adapters are available to convert the audio device terminals to a screw-type terminal).

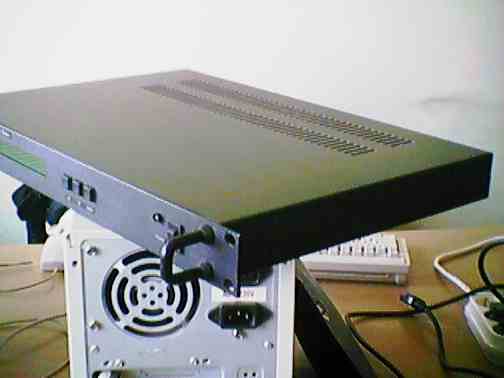

AVRS 8x16 is mounted in a compact 19” plastic finished double coated metal chassis in universal 1RU modular frame for rack mounting or for stand alone application. To view the front and back panels of the device click here.

**Video Specifications**
Input Type	composite video, DC(or AC) coupled, backporch at ground
Impedance (input)	75 Ohm internally terminated
Number of inputs	8
Return loss (input)	> 40 dB to 10 MHz
Level	1 V_p-p nominal, +1.5 V to 0.5 V
Sync input	1 V_p-p composite video or 0.4 Vp-p composite sync
Number of outputs	16
Impedance (output)	75 Ohm DC (or AC) coupled
Return loss (output)	> 40 dB to 10 MHz
Frequency response	< ± 0.5 dB to 5 MHz, 3 dB bandwidth 35 MHz
Differential phase	< 0.3 deg.
Differential gain	< 0.2 %
Tilt	< 0.1 % (DC coupled mode)
Sync output	2.5 V_p-p (loaded 75 Ohm)
Crosstalk	> 54 dB worst case @ 4.43 MHz, > 60 dB typ. @ 4.43 MHz
S/N(incl. hum)	> 70 dB unweighted wideband, > 76 dB unweighted to 10MHz
Switch	Vertical interval (external sync or from master input signal)

**Audio Specifications**
Impedance (input)	> 20 kOhm balanced
Level (input)	+27 dBu maximum
Number of inputs	8
Common mode rejection (input)	>40 dB, 20Hz to 20kHz
Impedance (output)	66 Ohm balanced
Level (output)	+27 dBu maximum
Number of outputs	16
Gain	1
Frequency response	<±0.25 dB, 20Hz to 20kHz
Total harmonic distortion	0.03%, 20Hz to 20kHz
Intermodulation distortion	< 0.05 % (SMPTE)
Crosstalk	> 60 dB to 20 kHz
Noise Floor	-75 dBu, 30kHz BW
Coupling	DC
DC on output	±50 mV maximum
Connectors	25-pin “D”type (screw-type adapter terminal)

**Router Control System**
Local control	PC control
Display: 2x40 alphanumerical display with Backlight	Type: GUI-application, running under Windows 95,98
Keyboard: Up Arrow, Down Arrow, Enter Key	Configuration: Full control, disables local panel control
Configuration: Full control over the device	Interface: Serial RS-232, 9600 bps
Type: Menu driven

To view sample windows of the Windows control application click here.

**Mechanical & Climatic & Power**
Height	44 mm (1RU, 1.75 inches)
Width	483 mm (19.00 inches)
Depth	305 mm (12.00 inches)
Weight	4.75 Kg (~ 10 libres)
Temperature	+5 deg.C to +35 deg.C
Humidity	96% maximum
Power	198-230 VAC, 50Hz, 20 VA
