SDIC10 – SMPTE 259M Serial Digital Interface to YUV/RGB/Composite/Luma/Chroma Extended 10-bit Video Encoder

The SDIC10 module provides a 10-bit conversion of an SDI input stream to Composite Video Baseband Signal / Luma / Chroma and YUV/RGB with embedded sync. Full specification CCIR 601 filters are included to ensure the maximum transparency for programme path applications.
Main Features:

ITU-R BT601/656 YCrCb to PAL/NTSC Video Encoder;
High Quality 10-bit Video DACs, 70dB Video SNR;
4 x Oversampling with Internal 54MHz PLL;
On-board Super Subalias Filter;
Digital Noise Reduction for reducing MPEG-systems block artefacts;
32-bit Direct Digital Synthesizer for the Color Subcarrier;

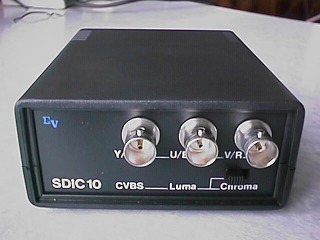

Multistandard Video Output Support – Composite (CVBS), Component YUV, Component RGB, Luma and Chroma;
Multiple Luma and Chroma filters;
Programmable Luma and Chroma Delay;
Programmable Gamma Correction – 2 different user-defined Gamma Curves A and B selectable;
Brightness, Contrast, Color, Hue and Sharpness Control;
Input Equalizer with Superior Jitter Performance – equalizes up to 300+ meters of Belden 8281 coaxial cable;
Data Retimer/Reclock PLL onboard – provides for removing of Excessive Jitter at the input SDI signal;

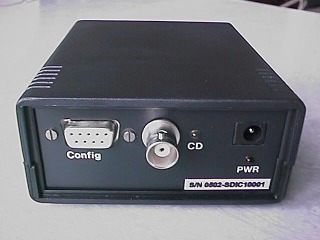

Carrier Detect Indicator on the Front/Back Panel;
Onboard Color Bar Generator switchable through the Configuration RS-232 Interface;
Simple Reconfiguration through the integrated Serial RS-232 Interface and ASCII Terminal Commands / Configuration GUI;

Contrast Control Range:     0.0 - 1.5
Color Control Range (U-, V-scaling):   0.0 - 2.0
Hue Adjust Control:      +/- 22.5 Deg
Brightness Control:      -7.5 IRE - 15 IRE
Sharpness Control:      -4dB - +4dB (applicable only if Luma filter is in Extended Mode)
Luma Delay Control Range:     0 ns - 222 ns
Chroma Delay Control Range:    0 ns - 296 ns

**SDIC10 Specifications**
*Video Serial Digital Inputs*
Applicable Standards	ITU-R BT.601/656
Format	EBU Tech 3267-E and SMPTE 259M-C
Number of Inputs	1 BNC
Input Impedance	75 Ohm
Sampling	4:2:2, 10 bit
Line/field rate	525/60 and 625/50
Return Loss	>19dB, 5-270MHz
Cable Equalization	0-250m (Belden 8281)
Data Rate	270 Mbps
Data jitter	180ps for 270 Mbps data passed through 200m of Belden 8281 cable
*Output Levels YUV (SMPTE/EBU)*
Level Y	1V p-p
Level U,V	+/-350mV, 75% saturation
*Output Levels RGB*
RGB	700mV p-p non-composite
RGB	1V p-p composite (sync)
*Output Standards*
Output Standards	PAL-B, D, G, H, I, PAL-N, NTSC-M, NTSC-N, PAL-60
*Video Performance*
Impedance	75 Ohm BNC
Return Loss	>35dB to 5.5MHz
Hue Accuracy	0.5 Degree
Color Saturation Accuracy	0.7 %
Luminance Nonlinearity	< 0.6 %
S/N Ratio	> 70dB unweighted (10kHz - 5MHz)
Differential Gain	0.4 %
Differential Phase	0.4 Degree
Chroma Nonlinear Gain	0.7%
Chroma Nonlinear Phase	0.5 Degree
Chroma AM noise	82dB
Chroma PM noise	72dB
*Power Requirements*
Power	9-12 VDC, 600mA

**Mechanical & Climatic**
Height	45 mm (1.75 inches)
Width	90 mm (3.5 inches)
Depth	130 mm (5 inches)
Weight	0.225 Kg
Temperature	+5 deg.C to +35 deg.C
Humidity	96% maximum
