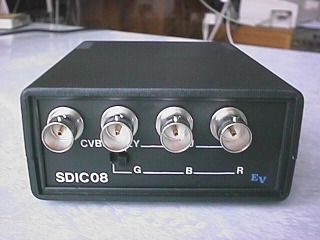

SDIC08 – SMPTE 259M Serial Digital Interface to YUV/RGB and Composite 10-bit Video Encoder

The SDIC08 module provides a 10-bit conversion of a SDI input stream to Composite Video Baseband Signal and YUV/RGB with embedded sync simultaneously. Full specification CCIR 601 filters are included to ensure the maximum transparency for programme path applications.
Main Features:

ITU-R BT601/656 YCrCb to PAL/NTSC Video Encoder;
High Quality 10-bit Video DACs, 70dB Video SNR;
32-bit Direct Digital Synthesizer for the Color Subcarrier;
Multistandard Video Output Support – Composite (CVBS), Component YUV and Component RGB;
Programmable Luma Filters (Low-Pass/Notch/Extended);
Programmable Luma Delay;
Input Equalizer with Superior Jitter Performance – equalizes up to 300+ meters of Belden 8281 coaxial cable;
Data Retimer/Reclock PLL onboard – provides for removing of Excessive Jitter at the input SDI signal;

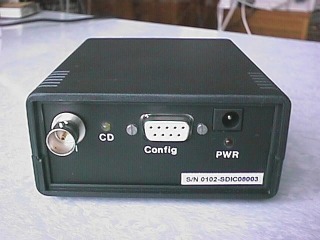

Carrier Detect Indicator on the Front/Back Panel;
Onboard Color Bar Generator switchable through the Configuration RS-232 Interface;
Simple Reconfiguration through the integrated Serial RS-232 Interface and ASCII Terminal Commands / Configuration GUI;

**SDIC08 Specifications**
*Video Serial Digital Inputs*
Applicable Standards	ITU-R BT.601/656
Format	EBU Tech 3267-E and SMPTE 259M-C
Number of Inputs	1 BNC
System	NTSC or PAL (follows digital choice)
Input Impedance	75 Ohm
Sampling	4:2:2, 8 bit
Line/field rate	525/60 and 625/50
Return Loss	>19dB, 5-270MHz
Cable Equalization	0-250m (Belden 8281)
Data Rate	270 Mbps
Data jitter	180ps for 270 Mbps data passed through 200m of Belden 8281 cable
*Output Levels YUV (SMPTE/EBU)*
Level Y	1V p-p
Level U,V	+/-350mV, 75% saturation
*Output Levels RGB*
RGB	700mV p-p non-composite
RGB	1V p-p composite (sync)
*Output Standards*
Output Standards	PAL-B, D, G, H, I, PAL-M, NTSC
*Video Performance*
Impedance	75 Ohm BNC
Return Loss	>35dB to 5.5MHz
Hue Accuracy	1.0 Degree
Color Saturation Accuracy	1.2%
Luminance Nonlinearity	< 1.1%
S/N Ratio	> 68dB unweighted (10k- 5MHz)
Differential Gain	0.4%
Differential Phase	0.4 Degree
*Frequency Response (PAL Mode)*
Y Stopband Cutoff > 50dB Attenuation	7.4MHz
Y Passband Cutoff > 3dB Attenuation	5MHz
Chroma Stopband Cutoff > 40dB Attenuation	4MHz
Chroma Passband Cutoff > 3dB Attenuation	2.4MHz
*Power Requirements*
Power	9-12 VDC, 600mA

**Mechanical & Climatic**
Height	45 mm (1.75 inches)
Width	90 mm (3.5 inches)
Depth	130 mm (5 inches)
Weight	0.2 Kg
Temperature	+5 deg.C to +35 deg.C
Humidity	96% maximum
