CSDI10 – YUV and Composite to SMPTE 259M Serial Digital Interface 10-bit Video Decoder

The CSDI10 precision ADC module provides a 10-bit conversion of a YUV analogue component or Composite Video Baseband Signal to two serial digital component outputs. Digital sampling conforms to ITU-R BT.601/656. Full specification filters are used to ensure the highest fidelity in the signal path.
Main Features:

PAL/NTSC YUV or CVBS Video to ITU-R BT601/656 SDI component Decoder;
Two High Quality 10-bit Video ADCs, 12-bit range;
Adaptive Digital Line-Length Tracking;
Multistandard Video Input Support – Composite (CVBS) and Component YUV;
Integrated Automatic Gain Control & Clamping – Analog and Digital Clamp Control;
Integrated Digital Anti-Aliasing Low-Pass Filter;
Integrated Shaping/Notch and Peaking Filter;
Integrated 2 Line Chroma Comb Filter;
Programmable Video Source Modes (through the Configuration RS-232 interface): Broadcast TV / VCR / Camcorder / Security / Surveillance;
Digital Output Formats: YUV 4:2:2 CCIR 601/656 8-bit or ext. 10-bit;
Programmable Video Controls – Pk-White / Hue / Brightness / Saturation / Contrast (through the RS-232 interface);
Locked Indicator on the Front/Back Panel;
Close Captioning Passthrough Operation;
Simple Reconfiguration through the integrated Serial RS-232 Interface and ASCII Terminal Commands / Configuration GUI;

**CSDI10 Specifications**
*Sampling*
Sampling	10 bit precision 4:2:2 to ITU-R BT.601/656

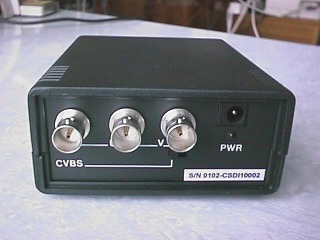

*Analogue Inputs*
Impedance	75 Ohm BNC
Input Return Loss	> 40dB to 5.5MHz

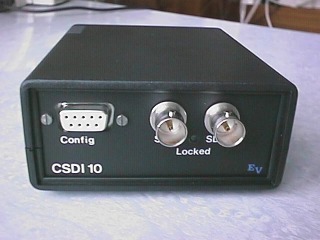

*Video Serial Digital Outputs (2)*
Applicable Standards	ITU-R BT.601/656
Format	EBU Tech 3267-E and SMPTE 259M-C
Number of Outputs	2 BNC
Output Impedance	75 Ohm
Return Loss	>15dB, 5-270MHz
Amplitude	800mV p-p unterminated
Data Rate	270 Mbps
Data jitter	220ps at 270 Mbps
Rise and Fall times	800ps
Drive Capability	Up to 250m (Belden 8281)
*Input Standards*
Input Standards	PAL-B/D/G/H/I/M/N, NTSC-M/N
*Video Performance*
Gain Stability	+/-0.05dB
S/N Ratio	> 60dB unweighted
Analog Front-End Channel Crosstalk	> 60dB
Hue Accuracy	1.0 Degree
Color Saturation Accuracy	1%
Color Gain Control Range	-6 to +18 dB
Luma Brightness Accuracy	1%
Luma Contrast Accuracy	1%
Luminance Nonlinearity	0.7%
Chroma Non-Linear Gain	0.7%
Differential Gain	0.5%
Differential Phase	0.5 Degree
*Frequency Response*
Y	-0.1dB to 5.5MHz
Chroma	-0.1dB to 2.5MHz
*Power Requirements*
Power	9-12 VDC, 600mA

**Mechanical & Climatic**
Height	45 mm (1.75 inches)
Width	90 mm (3.5 inches)
Depth	130 mm (5 inches)
Weight	0.25 Kg
Temperature	+5 deg.C to +35 deg.C
Humidity	96% maximum
