Stackable 8 Input - 1 Output Video Multiplexer VMUX-8x1

The broadcast quality video multiplexer VMUX-8x1 performs the switching of 8 video sources to 1 video output. All 8 video inputs are available as video outputs too for transit transmission of the video signals in the case when the video multiplexer have to be placed in the signal path to the transmitting equipment. The VMUX-8x1 can be configured and controlled through a PC or workstation with the provided application software. A StartUp configuration can be stored in the on-board nonvolatile flash memory of the device. An unlimited number of devices can be stacked and controlled through a single workstation to form larger switching matrices of the type n x (8x1). The device can work in a circular mode, where the inputs are switched sequentially with a programmable switching period specified by the control software. So a video carrousel can be implemented. A circular mode with delay of the command retransmission between the stacked devices is available too. So video carrousels with switching effects can be realized.
VMUX-8x1 is mounted in a compact 19” metal chassis in universal 1RU modular frame for rack mounting or for stand alone application. Video Multiplexer VMUX-8x1

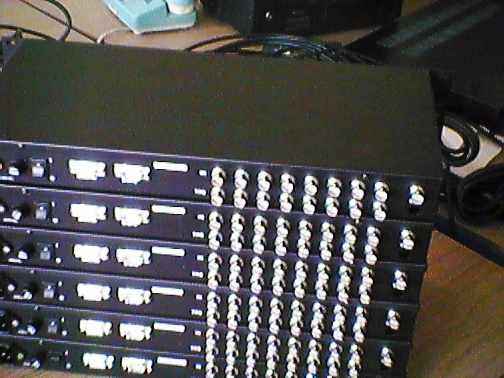

To view the front and back panels of the device click here. To view how the devices are connected in stack click here.

**Video Specifications**
Input Type	composite AC coupled, backporch at ground
Impedance (input)	>200 kOhm, transit
Number of inputs	8
Level	1 V_p-p nominal, +1.5 V to 0.5 V
Number of outputs	1
Impedance (output)	75 Ohm AC coupled
Frequency response	< 0.5 dB to 50 MHz, 3 dB bandwidth 110 MHz
Gain	1 +/- 0.05 dB
Differential phase	< 0.03 deg.
Differential gain	< 0.04 %
Tilt	< 0.1 % (AC coupled mode)
Crosstalk	< -66 dB worst case @ 4.43 MHz, < -77 dB typ. @ 4.43 MHz
S/N(incl. hum)	> 70 dB unweighted wideband, > 76 dB unweighted to 10MHz
Feedthrough	< -63 dB @ 10 MHz

**VMUX-8x1 Control System**
Local control	PC control
8 LED’s for each active channel	Type: GUI-application, running under Windows 95,98
	Configuration: Full control
	Switching period for circular mode: 0.2 sec - 54 min 36 sec
	Delay in stack for circular mode: 0.1 sec - 54 min 35.9 sec
	Interface: Serial RS-232, 9600 bps

To view the User Interface Application for the VMUX-8x1 click here.

**Mechanical & Climatic & Power**
Height	44 mm (1RU, 1.75 inches)
Width	483 mm (19.00 inches)
Depth	230 mm (9.05 inches)
Weight	2.5 Kg
Temperature	+5 deg.C to +35 deg.C
Humidity	96% maximum
Power	198-230 VAC, 50Hz, 4 VA
