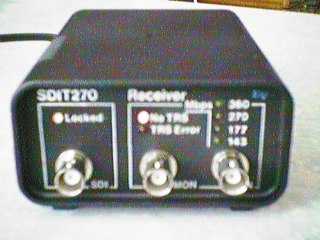

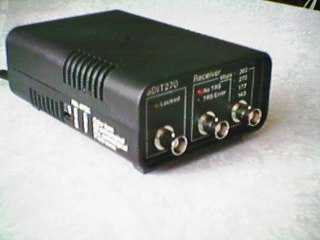

Serial Digital Interface Component Test Signal Generator & Receiver SDIT270

A precision source of 4:2:2 component digital test signals, the SDIT270 with its features is the ideal choice for production and development applications.
Main Features:

4:2:2 component test signal at 270 Mbps;
Test Signal 1: Full Field 75% Color Bars (EBU Bars in 625/50, Color Bars in 525/60);
Test Signal 2: Flat Field, Black – PAL and NTSC;
Test Signal 3: SDI pathological – EQ pathological, according to SMPTE RP178, PAL and NTSC;
Test Signal 4: SDI pathological – PLL pathological, according to SMPTE RP178, PAL and NTSC;
Visual indication of the test pattern generator operation – PLL Lock indicator;
PLL Receiver locks at 4 different data rates – 143, 177, 270 and 360 Mbps;
Visual indication of the receiver signal data rate;
No_TRS (Missing Timing Reference Signal TRS) error check – No valid digital video indication;
TRS_Error (New sync position of the TRS) error check – Sync alignment error indication;
Monitor Output for Sync pulse observation or error counting;

**SDIT270 Specifications**
*Video Serial Digital Outputs*
Applicable Standards	ITU-R656, SMPTE 259M
Output Level	800 mV_p-p nominal, +/-10% into 75 Ohm
Number of Outputs	1 BNC
System	NTSC or PAL (follows digital choice)
Output Impedance	75 Ohm
Sampling	4:2:2
Line/field rate	525/60 and 625/50
Rise and fall times	800ps
Data jitter	220ps
27MHz clock accuracy	27MHz +/- 10Hz
*Video Test Pattern Selection Table*
Switch positions Test Pattern 8 Full Field 75% Color Bars PAL 9 Equalizer pathological PAL A PLL pathological PAL B Flat Field Black PAL C Full Field 75% Color Bars NTSC D Equalizer pathological NTSC E PLL pathological NTSC F Flat Field Black NTSC
*SDI Receiver*
PLL Data Rate	143, 177, 270 & 360 Mb/s
Impedance	75 Ohm internally terminated
Level	800 mV_p-p nominal
*Error Indicators*
No TRS	Missing Timing Reference Signal
TRS Error	Timing Reference Signal Alignment Error
*Monitor Output*	Mode 1 and Mode 2 are selected with a front panel switch.
Mode 1	Sync pulse (on TRS) observation – the sync pulses can be viewed on an oscilloscope.
Mode 2	Error counting – the TRS alignment errors can be counted with an universal counter.
*Power Requirements*
Power	198-230 VAC, 50Hz, 6 VA

**Mechanical & Climatic**
Height	52 mm (2.05 inches)
Width	95 mm (3.74 inches)
Depth	147 mm (5.79 inches)
Weight	0.5 Kg
Temperature	+5 deg.C to +35 deg.C
Humidity	96% maximum
