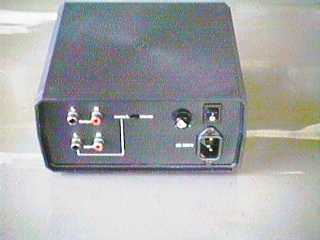

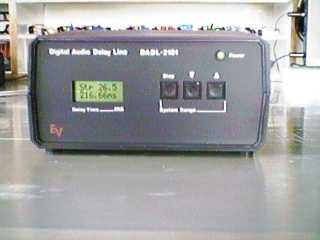

Digital Audio Delay Line DADL-2181

**DADL-2181 Audio Specifications**
Input Type	Stereo/Mono - selectable
Impedance (input)	> 10 kOhm
Input Level	0.707 V rms maximum, 2 V p-p
Output Impedance	600 Ohm
Output Level	0.707 V rms maximum, 2 V p-p
Output Type	Stereo/Mono
Gain	1
Gain error	± 10%
Interchannel gain mismatch	± 0.2 dB
Frequency response	<±0.25 dB, 20Hz -19kHz
Total harmonic distortion	0.04%, 20Hz to 20kHz
Intermodulation distortion	83 dB
Dynamic Range	70 dB
ADC crosstalk	- 80 dB
Noise Floor	-75 dBu, 30kHz BW
Coupling	AC
Connectors	RCA type
Resolution	16 bit
Sampling rate	37.8 kHz, 44.1 kHz (optional), 48kHz (optional)
Processing	Digital Signal Processing
Controls	3 buttons keyboard: Step, Up, Down, 2 x 8 LCD alphanumerical display
Power	198-230 VAC, 50Hz, 3 VA

**DADL-2181 Delay Specifications**
Stereo mode	0 – 216.66 ms with 26.46 us resolution Step ranges: 26.45 ms; 2.65 ms; 0.26 ms; 0.03 ms
Mono mode	0 – 433.33 ms with 52.91 us resolution Step ranges: 52.91 ms; 5.29 ms; 0.53 ms; 0.05 ms

**Mechanical & Climatic**
Height	90 mm
Width	81 mm
Depth	64 mm
Weight	0.8 Kg
Temperature	+5 deg.C to +35 deg.C
Humidity	96% maximum
