Video Distribution Amplifier 4 x DAV-1x4

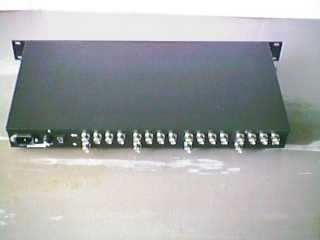

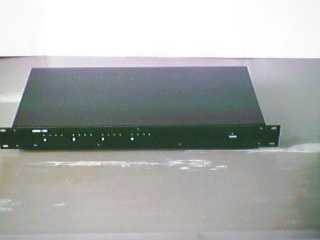

To view the front and back panels of the 4 DAV-1x4 video distribution amplifier in detail and the ON/OFF and GAIN controls click here.

**Video Specifications**
Input Type	composite video, DC(or AC) coupled, backporch at ground
Impedance (input)	75 Ohm internally terminated
Number of inputs	1 per device - 4 distribution amplifiers DAV-1x4 are housed in one case
Return loss (input)	> 40 dB to 10 MHz
Level	1 V_p-p nominal, +1.5 V to 0.5 V
Number of outputs	4
Impedance (output)	75 Ohm DC (or AC) coupled
Return loss (output)	> 40 dB to 10 MHz
Frequency response	< ± 0.1 dB to 40 MHz, 3 dB bandwidth 140 MHz
Differential phase	< 0.02 deg.
Differential gain	< 0.10 %
Tilt	< 0.1 % (DC coupled mode)
Off Isolation	> 75 dB @ 30 MHz
Crosstalk	> 50 dB worst case @ 4.43 MHz, > 65 dB typ. @ 4.43 MHz
S/N(incl. hum)	> 70 dB unweighted wideband, > 76 dB unweighted to 10MHz

**DAV-1x4 Control System**
Local control
Display	4 x 4 LED's for each distribution amplifier
Configuration	Indication and Enable/Disable of individual outputs through DIP switches
Gain Control	Individual controls for each distribution amplifier in the range -5 dB to +4dB

**Mechanical & Climatic & Power**
Height	44 mm (1RU, 1.75 inches)
Width	483 mm (19.00 inches)
Depth	235 mm (9.00 inches)
Weight	1.8 Kg
Temperature	+5 deg.C to +35 deg.C
Humidity	96% maximum
Power	198-230 VAC, 50Hz, 8 VA
