DDA-1x16 – SMPTE 259M Serial Digital Interface Distribution Amplifier with Equalising and Reclock

**DDA-1x16 Specifications**
*Video Serial Digital Input*
Applicable Standards	ITU-R BT.601/656
Format	EBU Tech 3267-E and SMPTE 259M-C
Number of Inputs	1 BNC
Input Impedance	75 Ohm
Sampling	4:2:2, 10 bit
Line/field rate	525/60 and 625/50
Return Loss	>19dB, 5-270MHz
Cable Equalization	0-250m (Belden 8281)
Data Rate	143, 177, 270, 360 Mbps
*Video Serial Digital Output*

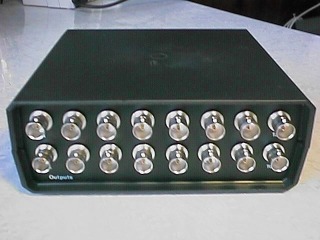

Number of Outputs	16 BNC
Output Impedance	75 Ohm
Return Loss	>15dB, 5-270MHz
Amplitude	800mVp-p (terminated)
Rise and fall times	650ps
Drive capability	Up tp 250m (Belden 8281)
Data jitter	+/- 200ps
Data rate	As input signal

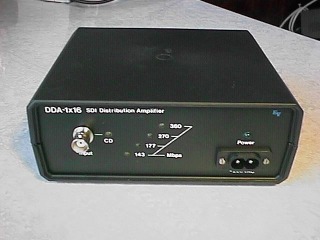

*Controls and Indications*
Carrier Detect LED
Data Rate LEDs
Power LED
*Power Requirements*
Power	220 VAC, 6W, Optional DC input 9-12 VDC

**Mechanical & Climatic**
Height	60 mm (2.36 inches)
Width	160 mm (6.3 inches)
Depth	150 mm (5.9 inches)
Weight	0.700 Kg
Temperature	+5 deg.C to +35 deg.C
Humidity	96% maximum
